Flat Coaxial Cable AS-CF-1106 (Cable Through Window & Door )

Product Description:

1、Ideal for Cable TV, Satellite TV, DTT
2、Flexible Fits under doors, in window frames, and other tight spots.
3、Tough exterior Works on "F" type connectors

This high quality cable is prefered by many installers for its dependability and ease of use.

Great for tight spots!

Product Details:

Brand Name：UNISAT
Model Number: AS-CF-1106
Weight: 20g.
Connectors: F-type connector
Flexible durable and foldable
Requires no drilling.
Use though window sills for fast & easy installs.
Export Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Product Size:

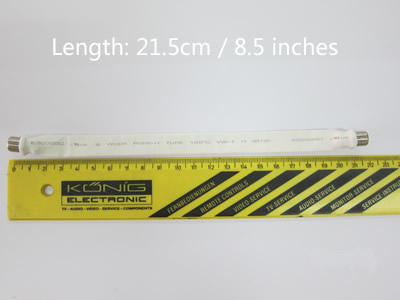

Length: 8.5 inches

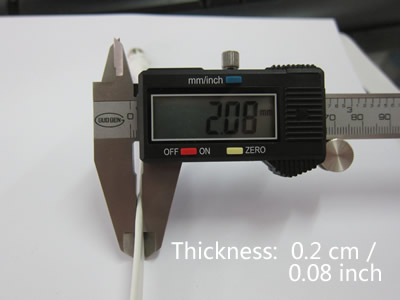

thickness: 0.08 inch

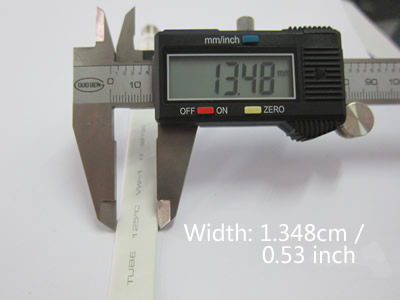

width： 0.53 inch.

The differents

1 .Copper shielding and conductor, less signal loss (especially in intermediate or high frequency point.), e.g.: more than 950MHZ satellite frequency.

2. Copper shielding, bonding technology for F-type connector, more firm.

3. Design as “sandwich” for longer life.( never cause shielding layer open circuit).

There are two types of testing: 180° and 90° test, as below:

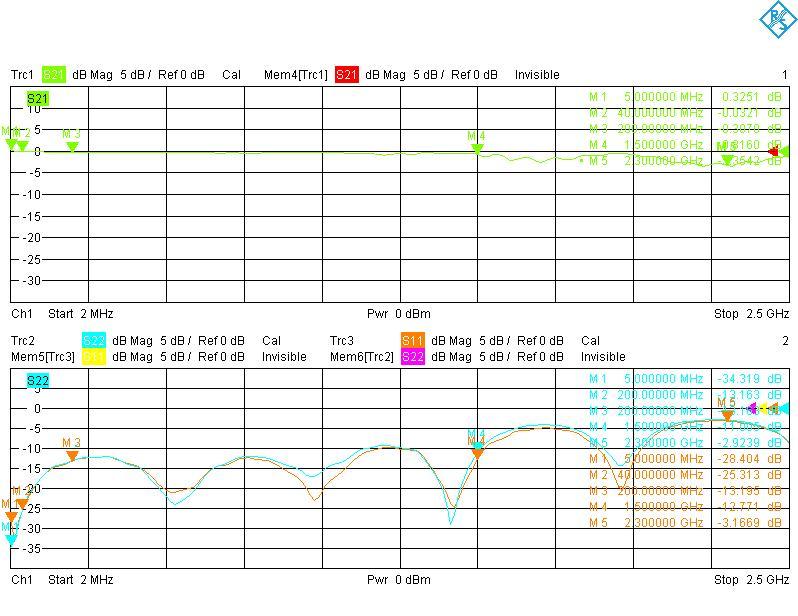

No.1 : 180° Test ( From 2 MHz To 2.5 GHz) ：

Point M1： 5 MHz 0.3251 dB；
Point M2：40 MHz -0.0321 dB；
Point M3：200 MHz -0.3070 dB；
Point M4：1.5 GHz -0.3160 dB；
Point M5：2.3 GHz -2.2869 dB .

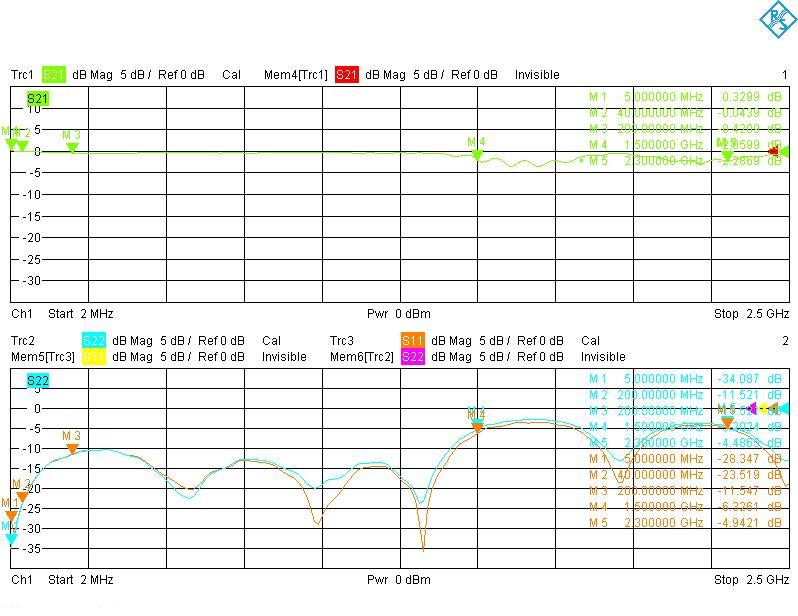

No.2: 90° Test ( From 2 MHz To 2.5 GHz) ：

Point M1： 5 MHz 0.3299 dB；
Point M2：40 MHz -0.0439 dB；
Point M3：200 MHz -0.34200 dB；
Point M4：1.5 GHz -2.0599 dB；
Point M5：2.3 GHz -2.2869 dB .
